INFORMATION

Technical parameter

Model	Body length L(mm)	Holding torque (N.M)	Rated current (A)	Phase inductance (mH)	Phase resistance (Ω)	Rotor inertia (g·cm²)	Positioning torque (kg·cm)	Motor weight (kg)	Pin count
1303S48282	282	50	6	14.9	0.86	1.1k	5.8	22	6

1303S48282 is a three-phase stepper motor that requires the three-phase driver.

Mechanical dimension

Note: Please refer to the actual drawings for motor parameters, wiring definitions, etc.

Wiring definition

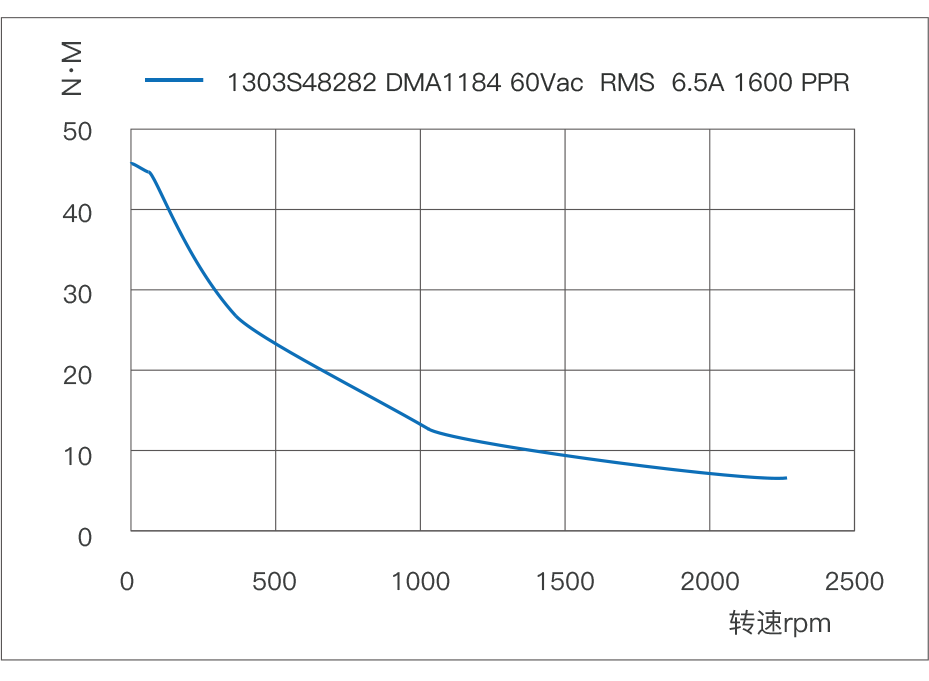

Torque-frequency curve
