AMS series high voltage AC servo motor, power range from 100W to 3kW, can be equipped with a variety of precision encoders，Suitable for CZ series AC servo driver. This series of motors adopts the industry advanced magnetic circuit design and high temperature resistant permanent magnet material, the operation is very stable, the overload capacity is strong, the vibration noise and the heating are small, is the optional scheme to improve the equipment performance and reduce cost.

Novotech AMS series high voltage servo has the characteristics of high performance, high quality, low cost and so on, its size is small, easy to install, high performance-price ratio, high reliability; suitable for electronic processing equipment, automatic grasping equipment, special machine tools, textile and clothing equipment, feeding manipulator, packaging equipment, printing equipment, engraving equipment, wire processing equipment, laser processing equipment, battery processing equipment, ceramic equipment and so on. Meet the application requirements of high precision positioning control and smooth and low speed operation of machinery and equipment.

Motor model	AMS40-M00130		AMS40-M00330
Rated power (w)	50	50	100	100
Rated linear voltage (V)	48	220	48	220
Rated linear current (A)	1.1	0.4	2.5	0.9
Rated speed (rpm)	3000	3000	3000	3000
Rated torque (N.M)	0.16	0.16	0.32	0.32
Peak torque (N.M)	0.48	0.32	0.95	0.64
Back EMF (V/1000R/MIN)	9.2	36.8	8.2	32.8
Torque factor(N.m/A)	0.145	0.4	0.128	0.36
Rotor inertia (KG.M²)	0.025*0.0001	0.025*0.0001	0.051*0.0001	0.051*0.0001
Winding (inter-wire) resistance (Ω)	6.75	108	2.2	34
Winding (inter-wire) inductance (mh)	7.5	108	3	40
Electrical time constant (MS)	1.11	1	1.36	1.18
Weight (KG)	0.32	0.32	0.47	0.47
Encoder resolution(PPR)	2500
Motor insulation grade	CLASS B(130℃)
Protection grade	IP65
Environmental requirements for use	Ambient temperature: -20 ℃ to + 50 ℃ ambient humidity: relative humidity < 90% (no frosting condition)

Motor winding socket

Winding lead

U (RED)

V (YEL)

W (BLE)

PE (YEL&GRE/BLK)

Socket number

one

two

three

four

Encoder socket

Signal lead

5V

0V

B +

Z-

U+

Z+

U-

A+

V +

W+

V-

A-

B-

W-

PE

Socket number

two

three

four

five

six

seven

eight

nine

ten

eleven

twelve

thirteen

fourteen

fifteen

one

Motor model	AMS60-M00630	AMS60-M01330	AMS60-M01930
Rated power (w)	200	400	600
Body length L (mm)	116	141	169
Rated linear voltage (V)	220	220	220
Rated linear current (A)	1.5	2.8	3.5
Rated speed (rpm)	3000	3000	3000
Rated torque (N.M)	0.637	1.27	1.91
Peak torque (N.M)	1.911	3.8	5.73
Back EMF (V/1000R/MIN)	28	28	28
Torque factor(N.m/A)	0.4	0.5	0.55
Rotor inertia (KG.M²)	0.17*0.0001	0.302*0.0001	0.44*0.0001
Winding (inter-wire) resistance (Ω)	11.6	5.83	3.49
Winding (inter-wire) inductance (mh)	22	12.23	8.47
Electrical time constant (MS)	1.9	2.1	2.4
Weight (KG)	1.2	1.6	2
Encoder resolution(PPR)	2500
Motor insulation grade	CLASS B(130℃)
Protection grade	IP65
Environmental requirements for use	Ambient temperature: -20 ℃ to + 50 ℃ ambient humidity: relative humidity < 90% (no frosting condition)

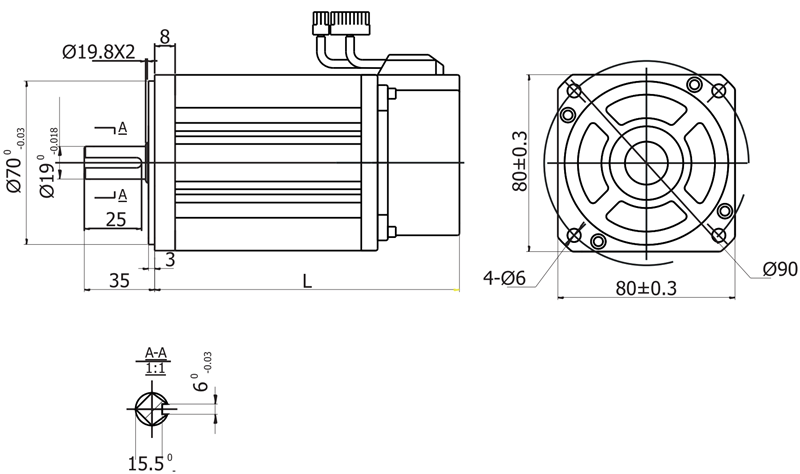

Motor model	AMS80-M01330	AMS80-M02430	AMS80-M03520	AMS80-M04025
Rated power (w)	400	750	730	1000
Body length L (mm)	124	151	179	191
Rated linear voltage (V)	220	220	220	220
Rated linear current (A)	6	9	9	13.2
Rated speed (rpm)	3000	3000	2000	2500
Rated torque (N.M)	1.24	1.27	3.5	4
Peak torque (N.M)	3.8	7.1	10.5	12
Back EMF (V/1000R/MIN)	40	48	71	56
Torque factor(N.m/A)	0.64	0.8	1.17	0.9
Rotor inertia (KG.M²)	1.05*0.0001	1.82*0.0001	2.63*0.0001	2.97*0.0001
Winding (inter-wire) resistance (Ω)	4.44	2.88	3.65	1.83
Winding (inter-wire) inductance (mh)	7.93	6.4	8.8	4.72
Electrical time constant (MS)	1.66	2.22	2.4	2.57
Weight (KG)	1.78	2.9	3.9	4.1
Encoder resolution(PPR)	2500
Motor insulation grade	CLASS B(130℃)
Protection grade	IP65
Environmental requirements for use	Ambient temperature: -20 ℃ to + 50 ℃ ambient humidity: relative humidity < 90% (no frosting condition)
